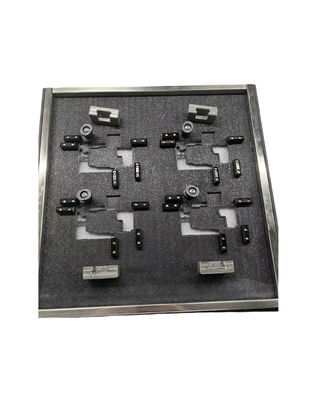

Shape Customized Wave Solder Fixture Electronic Parts High Precision

Shape Customized Wave Solder Fixture Electronic Parts High Precision

MOQ: One or all devices are not supported
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500pcs/
Detail Information
Place of Origin
CHINA SHENZHEN
Brand Name
chongxi
Certification
ISO9001-2015
Model Number
OEM
Name:
Customized Wave Solder Fixture
Color:
Black/ Gray
Type:
Electronic Parts
Tolerance:
±0.01mm
Highlight:

Customized Wave Solder Fixture

,

Wave Solder Fixture Electronic Parts

Product Description

PCB Furnace Fixture, Wave Soldering, Reflow Soldering, Hand Dip Carrier, SMT Printing Patch Test Rack, Material Tray Cus

With the continuous development of the electronic field, the requirements for products are also increasing. The product functions are becoming stronger and smaller, and the design of PCBs is becoming more complex. The processing technology is also becoming more complex. Manual welding and red glue processes are gradually replaced by solder paste processes. Wave soldering fixtures play a great role here, which can solve the conflict between solder paste processes and wave soldering, and improve product quality. At the same time, higher requirements have been put forward for wave soldering fixtures, such as good high-temperature resistance of materials, high processing accuracy, and good tin coating effect.



Features:

  • Product Name: Synthetic stone wave soldering through tin furnace fixture
  • Material: composite stone/synthetic stone
  • Size: Customized
  • Type: Electronic Parts
  • Color: Black/ Gray
  • Shape: Customized
  • Keywords: Wave soldering/Soldering furnace/Fixture/PCB/composite stone/synthetic stone/PCB furnace fixture, wave soldering, reflow soldering, hand dip carrier, SMT printing patch test rack, material tray customization



Technical Parameters:

Product Name Wave Pallet
MOQ 5pcs
Application

PCB furnace fixture, wave soldering, reflow soldering, hand dip carrier, SMT printing patch test rack, material tray customization

Type PCB fixture
Size Customized
Shape Customized
Color Black/ Gray
Tolerance ±0.01mm
Material composite stone/synthetic stone/glassfiber/bakelite



Applications:

We have more than ten years of experience in wave soldering fixture service with leading domestic electronic industry customers, mature process flow, and stable quality. We are the preferred choice for customers to choose wave soldering fixture suppliers.



Glassfiber product name: Synthetic stone soldering furnace fixture;



Application scope: Wave soldering in PCB manufacturing process;



Main materials: synthetic stone (Laurel, Isola);



Product function: 1. Support thin PCB board or flexible circuit board passing through the furnace;



2. Used for furnace passing of irregular PCB boards;



3. Keep the PCB board from deformation at high temperatures;



4. Used for simultaneous furnace passing of multiple PCB boards to improve equipment production efficiency;



5. Design universal wave soldering fixtures based on actual situations to reduce production costs;



Product features: 1. High precision: using high-precision CNC machining;



2. Anti static: Synthetic stone materials have excellent anti static performance;



3. Invariance: The openings are carefully designed to maintain the excellent mechanical properties of the material, while maintaining the invariance of the PCB board at high temperatures;



4. High efficiency: Multiple PCB boards can be placed on a furnace pass fixture to pass the furnace simultaneously, improving the efficiency of the equipment;



5. Long lifespan: 20000 times of long-term service life, with extremely high cost-effectiveness;

Customization:

  • Brand Name: CHONGXI
  • Model Number: OEM
  • Place of Origin: Shenzhen, China
  • Shape: Customized
  • Size: Customized
  • Type: PCB fixture
  • Product Name: Wave soldering fixture
  • Color: Black/ Gray/

1: Synthetic stone (high-temperature nanocomposite material) can maintain excellent physical properties at high temperatures.

2. The low thermal conductivity of synthetic stone ensures a basic heat distribution state

3: Based on the characteristics of synthetic stones (high-temperature nanocomposite materials), fixtures can be used for precision machining

4: The high-strength resin in synthetic stone can effectively block the characteristics of soldering flux and prevent the formation of tin tips.

Product usage: Insulation testing fixture, wave soldering, reflow soldering, SMT surface mount, furnace tray

PCB testing rack, circuit board testing fixture, ICD testing fixture module, Wave soldering fixture
